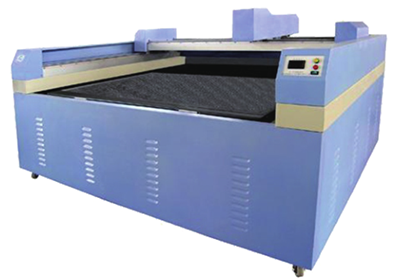

Laser cutting machine

■ Equipment Performance

      Special sections dedicated mold structure, imported linear guide or ball screw Rod support operation, Panasonic servo motion control systems, metal sealslmported RF carbon dioxide laser tube,channel-type feed lifting platform, workers Industry cycle refrigeration system，error alarm system，hydraulic control system protection，Blowing protection and control systems, smoke remoyal system.Optical path using constant lightRoad design, style knives aluminum work surface.

      The machine processing, large format,reasonable optical design,excellent control system Processed products cut smooth fine carving and meticulous precision.

■ Applicable fields

      The machine is widely applied in organic glass, architectural models aeromodelling, furniture making, door making, stone engraving, advartisement,decoration line, etc, and like the large-scale workpiece. The machine Is widely applied In the acrylic，organicglass, wood, bamboo products, paper, garment, leather,plastic, syntheticmaterial, marble, ceramic，rubber，resInlFVC sheet，FUsheet, PETsheet, ABS sheet, PCB sheet, painting sheet meal,anodizing sheet metal etc.

■ Optional configuration

USB interface; The control of touch screen; Red-light locating system.

Main technical parameters

Typeipecincatlon                  GGDK-1313/GGDK-13M/GGDK-132S/GGDK-182S

Laser power (imported R.F. Tube)                     100W 150W 200W

Connecting way                   PCI/USB online/offline reading U flash

Working platform size         1300x1300mm 1300x1800mm 1300x2500mm lS00x25O0mm

Cutting speed                      ≤1150mm/s

The accuracy of repeated orientataion              ≤±0.005mm

Cooling way        Circulation water cooling

Power supply      220V/50Hz/2kVA

Net weight          940kg/1000kg11100kg11200kg

Dimension           2130X1940 X1320 /2550X1940X1320

                           3240X2550X1320/3240X2570X1420 mm
