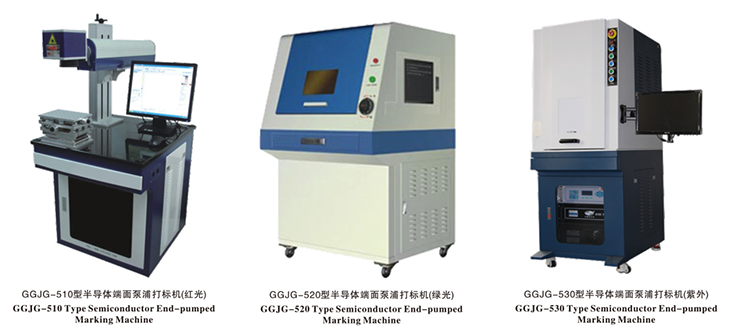

Laser marking machine

■ Equipment Performance

    That equipment is design and development by Wuhan Optical Valley Laser Equipments Co.,Ltd, it is have high quality and how costdiode solid laser module,TEMOO laser module,10000 hours free of maintenance,it is widely used in industry marking and en-graving.The software wuich development by Wuhan Optical Valley Laser can compatible sofeware output of AutoCAD,CorelDRAW,PHOTOSHOP, signs, graphs, images, bar codes, two dimensinal codes, automatically increased serial numbers. It can support various file formats like PLT, PCX, DXP, BMP, JPG and so on. It may use TTF fonts directly,can meet demand of massive on-line and off-line industrialized production.

■ Applicable fields

    The machine is widely applied in electronic component, the communication, the spare parts of automobiles and motorcycles,instrument and meter, aerospace，war products, hardware and machinery, measuring and cutting tools, sanitary equipment,medication, food and beverage, cosmetics，drugs packing, medical appliance, solar energy, handicraft and so on. It is suitable to mark on all kinds of metal and partial nonmetallic material.

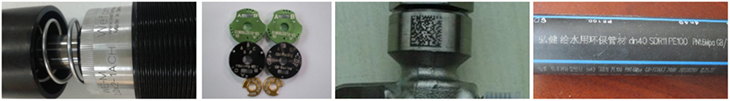

■Sample Display

■ Main technical parameters

Type specification                   GGJG-530  GGJG-520  GGJG-510

Wave length                            355nm  532nm  1064nm

Laser power                             3W/7W  5W/7W/9W  10W

Laser repetitionfrequency       20kHz - 200kHz

Marking speed                        ≤ 8000mm/s

Marking depth                        0.01 mm - 0.5mm (according to the material)

Min focus facula diameter      20 μm

Repetition precision                5μm    0.0025mm

Marking scope                        110x110mm (or) 145x145mm

Power supply                          AC220V/50HZ/2KVA

Cooling way                            Force-air cooling
