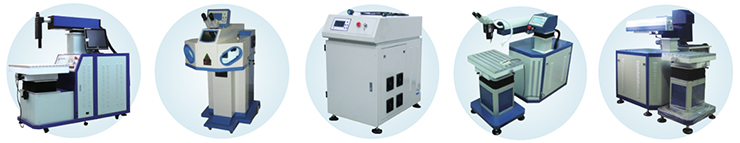

Yag Laser Welder Series

>>>Model Features:

       Suitable for welding of thin plates within 3mm; 3D work bench and the master unit are integrated; can weld space curye and welds of high variable, applied in medical, electronics, battery, instrument, etc.

>>>Industry application:
       Suitable for welding of kettle, vacuum cup, stainless steel bowl, sensor, tungsten wire, high power diode (triode), aluminum alloy, laptop shell, mobile phone battery,door handle, mould, electric apparatus Httings, filter, nozzle, stainless steel products,golf head, zinc alloy artworks,Weld point, straight line, circle, square or any plane graphs drawn by AUTOCAD;weld vertical track.

>>> Technical parameters:
Model                                         GGHJ-D 300 /400 /500
Maximum laser power               300W/400W/500W
Laser wavelength                       1064nm
Laser welding depth                  40J/60J/80J
Max single pwls energy             ≤4mm (according to materials)
Pulse width                                 ≤20m s
Laser welding frequency            ≤100H z
Adjusting range oflight spot      0.3-3.0m m
Integrity power                           ≤14KW/16KW
Power supply                              380V/Three-phase/50Hz/60A
Maximum bearing of standard work bench     <100kg
Stroke of work bench                              200X20 0mm to 1200X1200mm
Repeating precision ofwork bench         ±0.01mm
Positioning precision of work bench      ±0.02mm
Sighting positioning system       Red light, CCD monitor system(optional rotary clamp)
Cooling method                         Water cooling
Master unit dimensions             1600 X 800 X 1800mm
