Pneumatic Marker

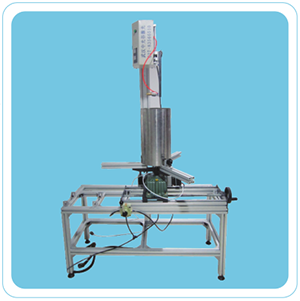

GGQD-021W Type Horizontal rotary pneumatic marking machine

    Workpiece in the chuck to the workpiece diameter is claw or claw support positioning, marking the first Z-axis travel up and down 300mm, 200mm left and right travel，according to the diameter of the workpiece and the marking position to adjust the best marking spacing. To achieve a large workpiece in the circumferential direction 360 marking. (Marking the Hrst adjustment to vertical, but also applicable to a variety of products, parts, signs and other workpiece marking).

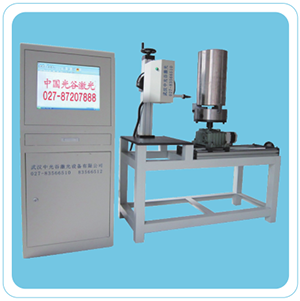

GGQD-021D Type Multi station rotary pneumatic marking machine

    Applicable to large cylindrical cylindrical workpiece along the circumference of the outer circle (360 °) diameter (360°）marking.

Technical data

Model                      GGQD-021W   GGQD-021D

Forms of control     Fully enclosed control cabinet

Marking format        150x100mm  200x100mm

                                 150x100mm  200x 100mm  300x200mm

Marking depth         0.1-2mm (according to materials)

Marking speed         50-80mm/s

Rotating device        Standardφ125mm/Optional φ80mm/φ160mm

Power consumed      220V±10%/50Hz/1000W

Gas supply needs      0.4-0.6Mpa dry clean air
